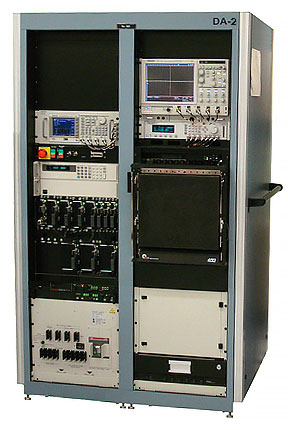

DA-2 ATS Test System
The DA-2 ATS is an economical Commercial-Off-The Shelf (COTS) build-to-print tester. The test station is compliant with the published drawing package. The system does not include software.
Major Components of the DA-2 ATS:
| Reference Number | Description | Units Per Assembly |
|---|---|---|
| 200625630‑20 | Associated Hardware | 1 |
| 200625848‑10 | DC Power Supply 9 | 1 |
| 200625851‑10 | DC Power Supply 8 | 1 |
| 200625852‑10 | Modular Power System 2 | 1 |
| 200625856‑10 | Modular Power System 1 | 1 |
| 200625866‑01 | 150 Watt Load | 2 |
| 200625866‑03 | 250 Watt Load | 2 |
| 200625866‑05 | 300 Watt Load | 2 |
| 200625862‑10 | Arbitrary Function Generator | 1 |
| 200625881 | VXI CPM Controller | 1 |
| 200625883‑10 | VXI Relay Card 1 | 1 |
| 200625887 | VXI Serial Card | 1 |
| 200625888 | VXI Counter/Timer | 1 |
| 200625889 | VXI Relay Card 2 | 1 |
| 200625893 | VXI Relay Card 3 | 1 |
| 200625897 | VXI AWG | 2 |
| 200625898 | VXI DMM | 1 |
| 200625899 | VXI Synchro/Resolver | 1 |
| 200625901‑20 | Cross Point Matrix | 1 |
| 200625916 | Digital Test Instrument | 7 |
| 200625920 | Digital Test Instrument Controller | 1 |
| 200625924 | Probe Assembly | 1 |
| 200626010 | Latch Kit | 1 |
| 200625927‑10 | Pulse Generator | 1 |
| 200625974‑10 | Oscilloscope | 1 |
| 200626005‑20 | Double Tier Interface | 1 |
| 200625700‑10 | Self Test ITA and Associated Hardware | 1 |
Options Available for the DA-1 ATS
| Option 1 | Self Test (Requires Customer Software) |
| Option 2 | Calibration (Requires Customer Software) |
| Option 3 | Customer Logo Silkscreen (Provided Upon Customer Request) |
