VXI Instrument Interface

For Migrating To VXI Modular Instruments

---

Replace Obsolete VXI Interfaces

The VXI instrument interface from ATTI provides a mature building block designed for test engineers to replace obsolete VXI interfaces, using register, memory or word serial protocols. This product is designed to support the integration special test functions into VXI assets without intense hardware and software knowledge of VXI design requirements. This product reduces the risk of VXI instrument sustainment from your test development or test migration schedule. The ATTI VXI instrument interface is compatible with register and memory mapped instrument command and control and supports an expandable SCPI parser.

Initial integration support is provided with more in-depth engineering services available upon request.

• Extend the life of your VXI investment
• Reduce VXI instrument development time & risk
• Command & Control through standard VXI interfaces
  • Register, Memory Mapped and Word Serial Protocol
  • SCPI parser supported

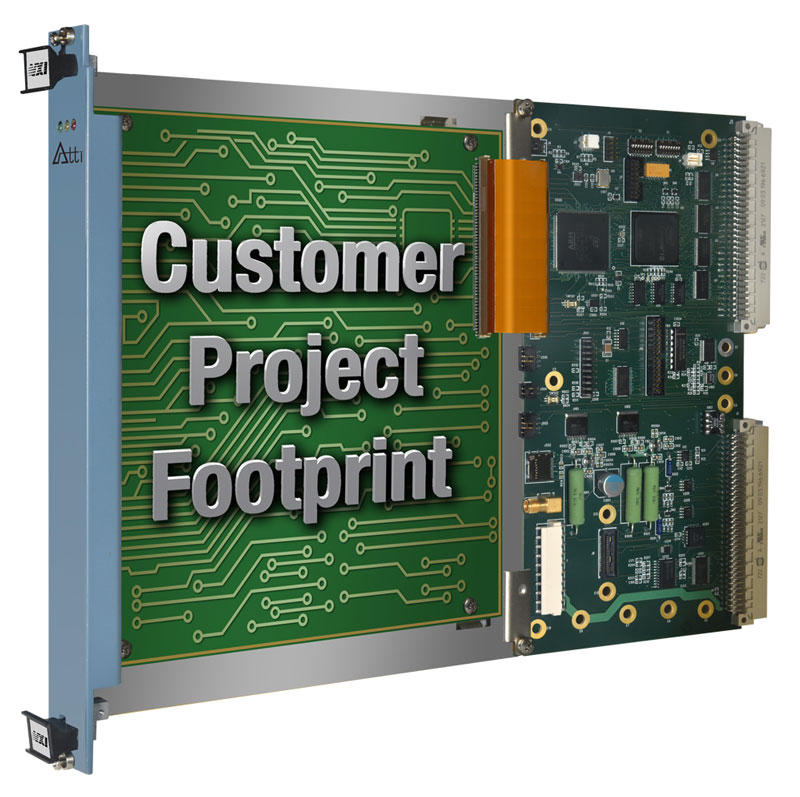

• Electrical interface definition for customer project footprint
• PCB design rules for customer project footprint
• Mechanical design rules for customer project footprint

---
