Mass Interconnect Products

Reconfigurable Modular Mass Interconnect Panel

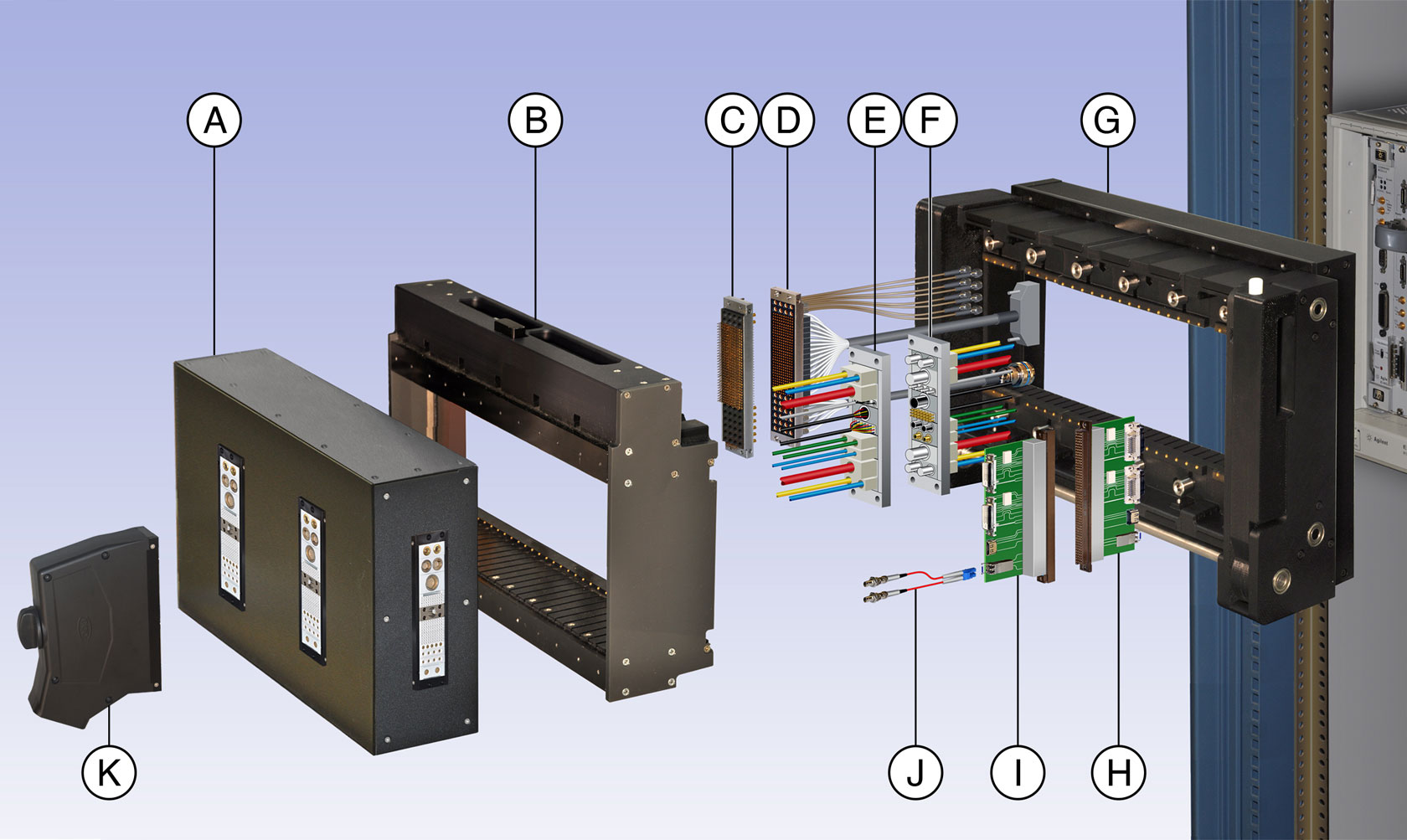

IEEE-1505 Mass Interconnect Panel

A. ITA Enclosure
B. ITA
C. IEEE-515 Module (ITA)
D. IEEE-515 Cable Assembly (Rcvr.)

E. Module (ITA)
F. Cable Assembly (Rcvr.)
G. Receiver
H. PCB Cable (Receiver)

I. PCB Cable (ITA)
J. SDI Cable
K. ITA Cable

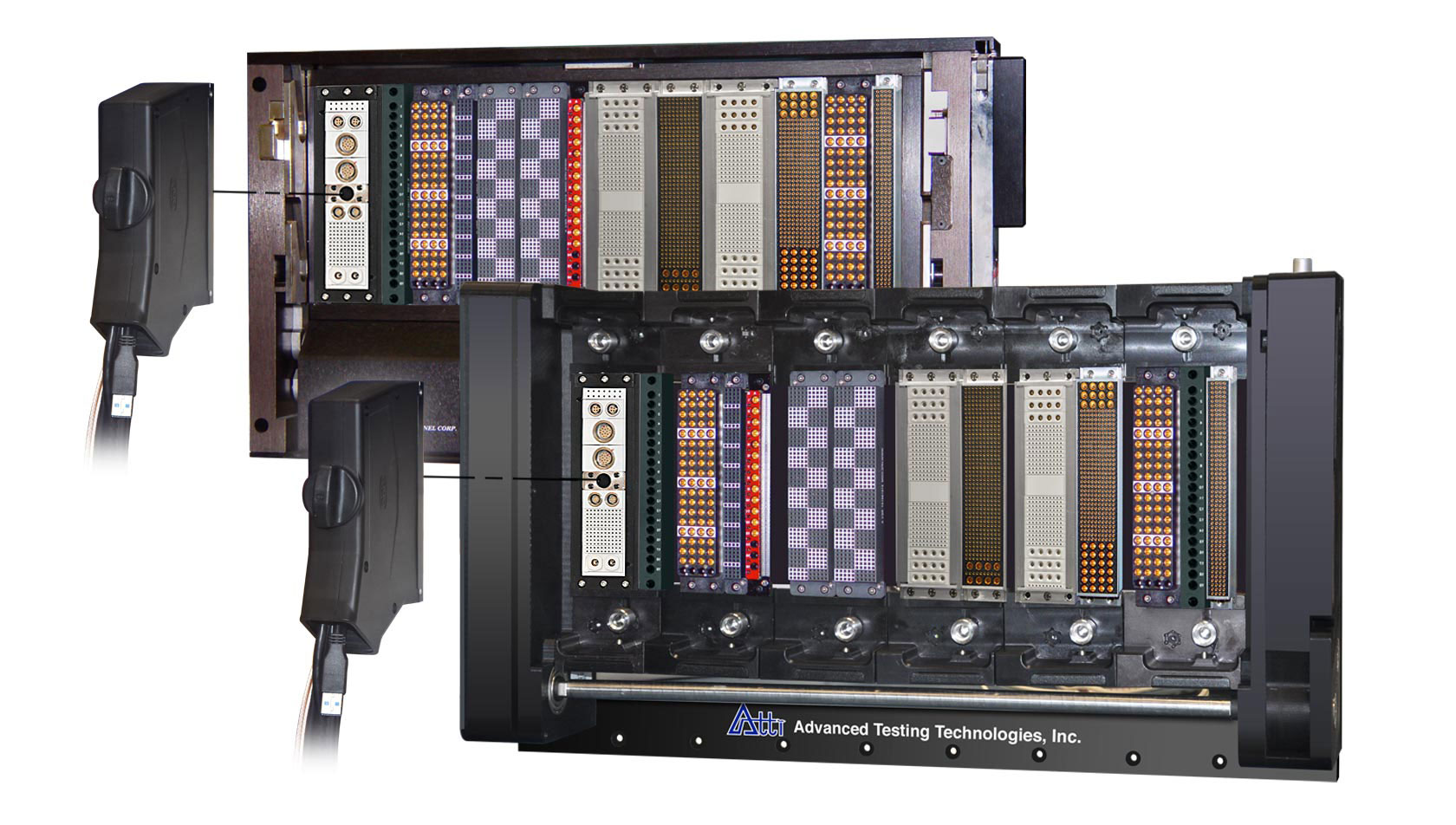

Multi-Vendor Universal Reconfigurable Connector System

Email for More Info

IEEE-1505 Mass Interconnect Panel Configurations

IEEE-1505 Mass Interconnect Panel Configurations

Mass Interconnect Panels are available in the following configurations:

4-Slot
8-Slot
12-Slot
16-Slot
20-Slot
24-Slot
2 x 8-Slot
2 x 8-Slot (2-Rack)

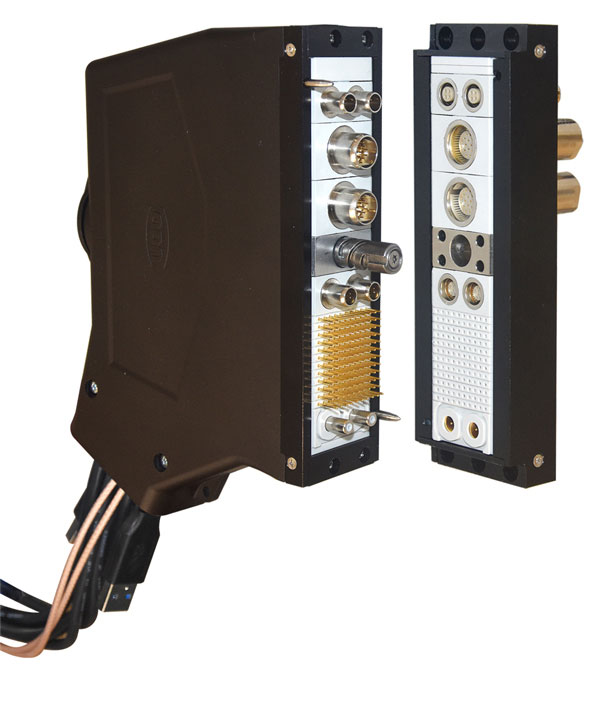

ATTI ODU Universal Panel Mount Contact System

ATTI ODU Universal Panel Mount Contact System

Can be used in most existing patch panel systems, for example: IEEE-1505, VPC, or Mac Panel Scout.

Only Connector Available For:

IEEE-1505
VPC-90
Scout

VP Series or IEEE-1505 Connectors

High power and coax contacts are also available
Hybrid blocks mixing all contacts per user requirement can be created

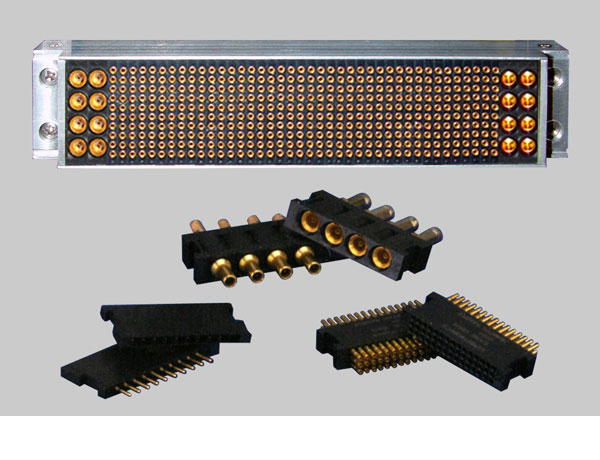

.100 On Center Contact

Maximizes cable options
- Ribbon cable
- Molded (impedance match)
- PCB
- Wire Wrap
- Crimp
Mix and match pin types
Highest electrical performance for a general purpose pin
High pin density for IEEE-1505
Best performance in VP-90

VP Series or IEEE-1505 (RFI/CTI)

Reconfigurable, modular mass interconnect panel (MIP) suitable as replacement for VPC and Mac Panel. Can be configured to include: coax, CTI, hyperboloid, and RFI signal pin connectors.

Connector Specifications

ATTI 480 Pin Female Receiver	Leading Competitor
Max Current
4 Amps	3 Amps
Contact Resistance
less than 5 m ohms	less than 25 m ohms
Life Cycles
100,000	20,000
Insulating Resistance
10K M ohms	5K M ohms

200 Pin HDI

IEEE-1505 Patch Panel can be used with VME, employs box pins and contacts to connect with discrete wire connector

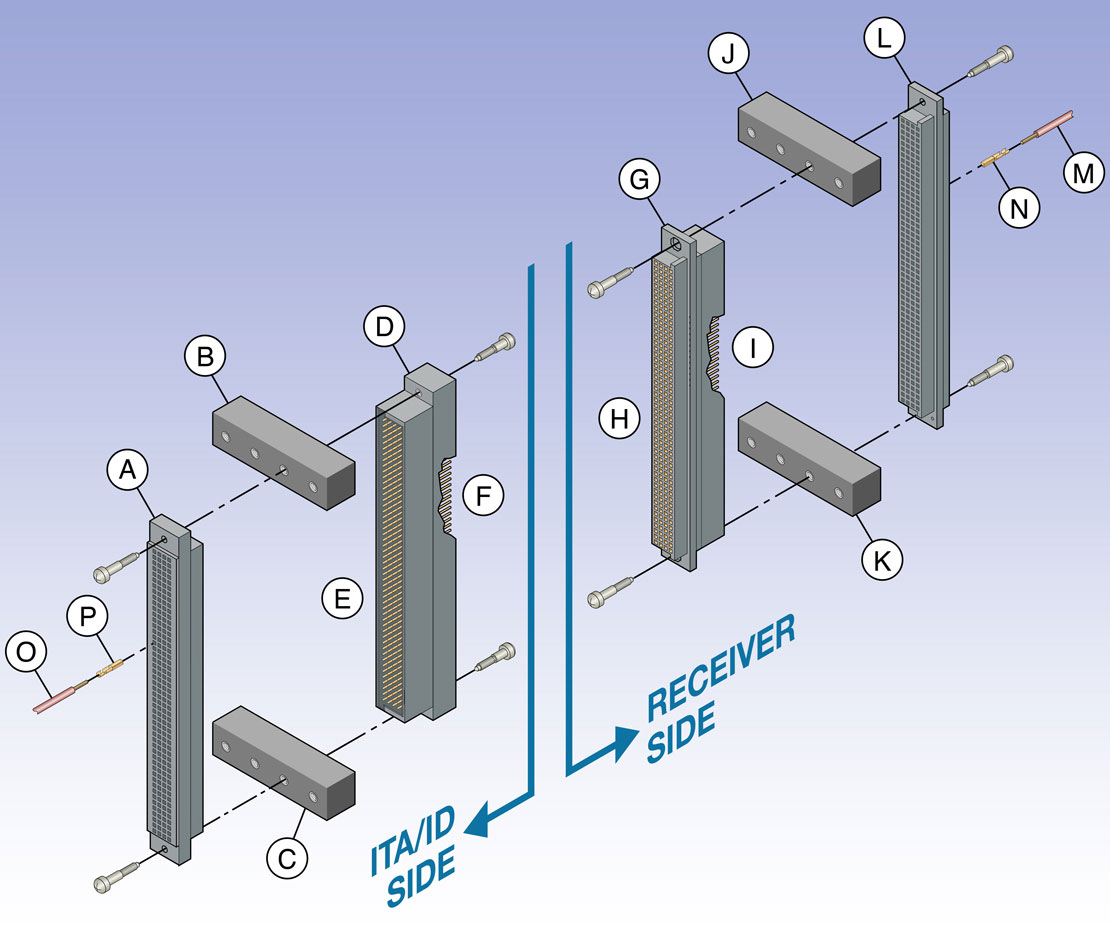

200 Pin HDI Connector exploded view

A. Discrete Wire Connector PN 20134470-01 (Includes Screw x 2 PN 96000184-15)

B. P/O ITA Frame Upper

C. P/O ITA Frame Lower

D. Patch Panel Connector PN 20134467-01 (Includes Screw x 2 PN 96000184-13)

E. Male Pins

F. Male Pins

G. Patch Panel Connector PN 20134479-01 (Includes Screw x 2 PN 96000188-05)

H. Female Pins

I. Male Pins

J. P/O Receiver Frame Upper

K. P/O Receiver Frame Lower

L. Discrete Wire Connector PN 20134474-01 (Includes Screw x 2 PN 96000184-15)

M. Wire

N. Crimp Pin PN 20134475-01

O. Wire

P. Crimp Pin PN 20134475-01

ATTI ODU Versatility

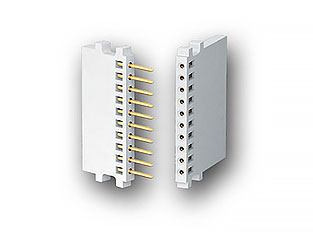

ATTI ODU Signal Connector — Signal - Economical Solution

Operating voltage	32 V
Rated impulse voltage	1,500 V
Max continuous current	6 A for 0.38 mm.
Degree of pollution	2
Mating cycles minimum	5,000

ATTI ODU Power Connector — Power

Operating voltage	500 V
Rated impulse voltage	3,000 V
Max continuous current	41 A for AWG 12
Degree of pollution	2
Mating cycles minimum	100,000

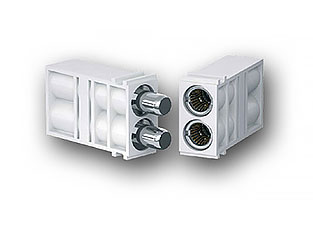

ATTI ODU High Current Connector — High Current

Operating voltage	500 V
Rated impulse voltage	3,000 V
Max continuous current	154 A for 25 mm.
Degree of pollution	2
Mating cycles minimum	10,000

ATTI ODU Coax Connector — Coax - High Current Density

Frequency range	0 to 1.3 GHz
Mating cycles minimum	60,000 V

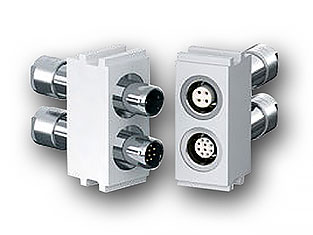

ATTI ODU High Speed Connector — High Speed

Mating cycles minimum	10,000
Suitable for all common bus systems USB 1.1, USB 2.0, USB 3.1 GEN 1, FireWire, Ethernet, CAT 5

RFI Receiver Components

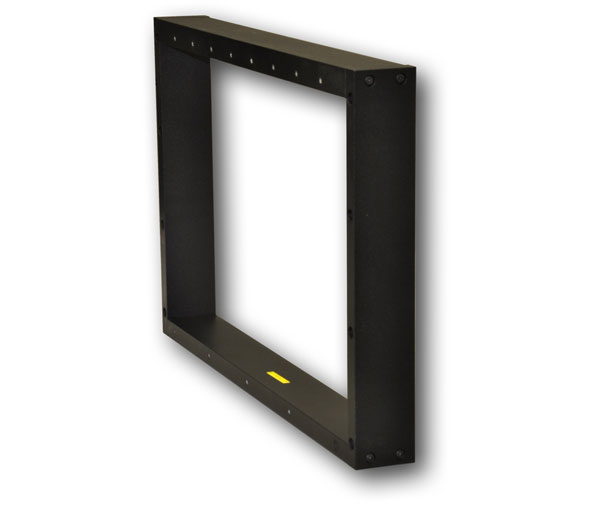

24-Slot IEEE-1505 Receiver — 20134006-110 24-Slot IEEE-1505 Receiver

Receiver Frames

Part Number	Description
20134006-10	4-Slot IEEE-1505 Receiver
20134006-30	8-Slot IEEE-1505 Receiver
20134006-50	12-Slot IEEE-1505 Receiver
20134006-70	16-Slot IEEE-1505 Receiver
20134006-110	24-Slot IEEE-1505 Receiver (shown)
20134008-10	29-Slot NGATS Receiver
20134095-110	24-Slot Dual Drive IEEE-1505 Receiver
20134095-130	24-Slot IEEE-1505 Receiver 1
20134600-10	Receiver, IEEE-1505 (29 Slot Dual Drive Aluminum)

Modules Without Contacts

20134468-01 Connector, Elec, RF Module, Coax, 4 Slot, 7 GHz, (170 Position) — 20134468-01 Connector, Elec, RF Module, Coax, 4 Slot, 7 GHz, (170 Position)

07030149-11 Female Housing (10 Position) — 07030149-11 Female Housing (10 Position)

07030149-07 Female Housing (4 Position) — 07030149-07 Female Housing (4 Position)

20134003-03 Female Coax Housing (4 Position) — 20134003-03 Female Coax Housing (4 Position)

20134005-03 Female Power Housing (4 Position) — 20134005-03 Female Power Housing (4 Position)

Part Number	Description
193-312	Power Module (59 Position)
193-322	Power Module (152 Position)
193-412	Coax Module (59 Position)
193-422	Coax Module (152 Position)
07030149-07	Female Housing (4 Position) (shown)
07030149-11	Female Housing (10 Position) (shown)
20134003-03	Female Coax Housing (4 Position) (shown)
20134005-03	Female Power Housing (4 Position) (shown)
20134465-01	Connector, Elec, Power Module, 4 Slot, 23 A, (307 Position)
20134468-01	Connector, Elec, RF Module, Coax, 4 Slot, 7 GHz, (170 Position) (shown)
20134474-01	200 Pin Connector Block (attaches to RFI 200 pin connector block) (minimum order - 5)
20134479-01	200 Pin Connector Block
20134480-10	Power Module, 4 Slots Wide
20134481-10	RF (Coax) Module, 4 Slots Wide
20134482-10	Power Module, 4 Slots Wide, Connector Saver
20134483-10	RF Coax Module, 4 Slots Wide, Connector Saver
20134486-01	RF Mod, Receiver, 4 Slot, 7 GHz #8, 174 Position, Cover Plate
20134193-10	Receiver Latch/Hook Retrofit Kit

Modules With Contacts

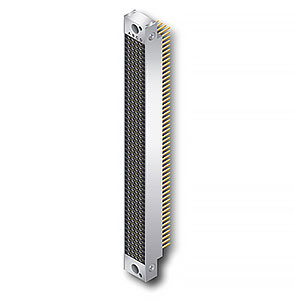

04000328-10 Connector (200 Contact, Female) — 04000328-10 Connector (200 Contact, Female)

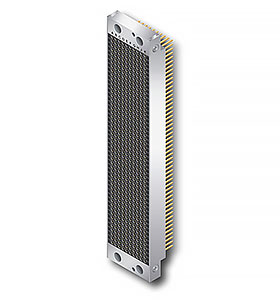

04000265-10 Connector (500 Contact, Female) — 04000265-10 Connector (500 Contact, Female)

Part Number	Description
193-210	Signal Contact (200 Position, Shrouded Box Posts)
193-240	Signal Contact (200 Position, PCB Straight)
193-242	Signal Contact (200 Position, PCB Right Angle)
193-250	Signal Contact (200 Position, PCB Transition to 4 x 25 x 2 Ejection Header)
193-252	Signal Contact (200 Position, PCB Extender)
04000328-10	Connector (200 Contact, Female) (shown)
04000265-10	Connector (500 Contact, Female) (shown)
20134467-01	Connector, Elec, Signal Module (200 Position, Female)
20134470-01	Connector, Signal Module, Rear Mount (200 Position, Female)

Contacts

20134004-03 Power Contact (12-14 AWG, Female) — 20134004-03 Power Contact (12-14 AWG, Female)

20134001-01 Signal Contact (Female, Solder) — 20134001-01 Signal Contact (Female, Solder)

07030159-03 Signal Contact (female, 0.25 Sq. Tail) — 07030159-03 Signal Contact (female, 0.25 Sq. Tail)

20134001-03 Signal Contact (Female, PCB) — 20134001-03 Signal Contact (Female, PCB)

00002492-01 Socket (RG316, DC-3 GHz) — 00002492-01 Socket (RG316, DC-3 GHz)

20134002-03 Coax Contact (RG405/T-Flex, Female) — 20134002-03 Coax Contact (RG405/T-Flex, Female)

Part Number	Description
20134004-03	Power Contact (12-14 AWG, Female) (shown)
20134001-01	Signal Contact (Female, Solder) (shown)
07030159-03	Signal Contact (Female, 0.25 Sq. Tail) (shown)
20134001-03	Signal Contact (Female, PCB) (shown)
00002492-01	Socket (RG316, DC-3 GHz) (shown)
20134002-03	Coax Contact (RG405/T-Flex, Female) (shown)
20134477-01	Coax Contact for the RFI Coax Block (14 AWG Wire) (minimum order - 25)
20134484-01	Power Contact, Connector Saver Type (minimum order - 5)
20134485-01	Coax Contact Assembly, Connector Saver Type (minimum order - 25)

Unterminated Patchcords (see Note 1)

Part Number	Description
196-342-96	Power with Eight Feet of 14 AWG
196-412-96	Coax with Eight Feet of RG316
196-414-96	Coax with Eight Feet of RG178
196-110-96	Signal Box Pin with Eight Feet of 18-28 AWG (per 100)
196-002-96	Signal Hyperboloid 4 Block with Eight Feet of 18-28 AWG
Note 1 - Custom parts - available upon request.

Terminated Patchcords (see Note 1)

Part Number	Description
196-342-96L	Power with Eight Feet of 14 AWG to Lug
196-412-96B	Coax with Eight Feet of RG316 to BNC
196-414-96B	Coax with Eight Feet of RG178 to BNC
196-412-96S	Coax with Eight Feet of RG316 to SMA
196-414-96S	Coax with Eight Feet of RG178 to SMA
Note 1 - Custom parts - available upon request.

Protective Covers

Part Number	Description
191-504	4-Slot Receiver Cover
191-509	9-Slot Receiver Cover
191-524	24-Slot Receiver Cover
191-529	29-Slot Receiver Cover

Mounting Kits (19 Inch)

Part Number	Description
191-404	4-Slot Dual Drive Mount
191-409	9-Slot Dual Drive Mount
20134045-10	24-Slot Dual Drive Mount
191-429	29-Slot Dual Drive Mount

Connector Components

Part Number	Description
04000267-01	End Cap, Connector
04000267-02	End Cap, Connector

RFI Receiver Assemblies

20134200-30 IEEE-1505 Receiver Assembly — 20134200-30 IEEE-1505 Receiver Assembly

Custom Assemblies (see Note 1)

(This product is protected by the following patent: 7297031 B2)

Part Number	Description
20134200-10	IEEE-1505 Receiver Assembly (This product is protected by the following patent: 7297031 B2)
20134200-30	IEEE-1505 Receiver Assembly (This product is protected by the following patent: 7297031 B2) (shown)
Note 1 - On-site source inspection required.

VDATS Receiver Components

Patchcords (see Note 1)

Part Number	Description
20170500-10	Prototype (0.100) Center to RG178 VDATS Receiver/Socket (minimum order - 100)
Note 1 - Custom parts - available upon request.

ITA Fixture/Plug/Male

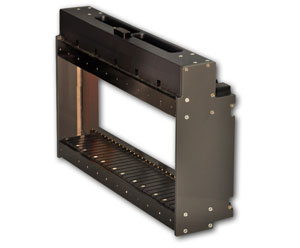

20134007-50 24-Slot IEEE-1505 ITA — 20134007-50 24-Slot IEEE-1505 ITA

ITA Frames

Part Number	Description
20134007-10	4-Slot IEEE-1505 ITA
20134007-50	24-Slot IEEE-1505 ITA (shown)
20134009-10	29-Slot NGATS ITA
20134500-10	29-Slot IEEE-1505 ITA

Modules Without Contacts

07030149-01 Male Housing (4 Position) — 07030149-01
Male Housing (4 Position)

07030149-05 Male Housing (10 Position) — 07030149-05
Male Housing (10 Position)

20134003-01 Male Coax Housing (4 Position) — 20134003-01
Male Coax Housing (4 Position)

20134005-01 Male Power Housing (4 Position) — 20134005-01
Male Power Housing (4 Position)

Part Number	Description
193-325	Power Module (152 Position)
193-323	Power Module (59 Position)
193-425	Coax Module (152 Position)
193-413	Coax Module (59 Position)

Part Number	Description
07030149-01	Male Housing (4 Position) (shown)
07030149-05	Male Housing (10 Position) (shown)
20134003-01	Male Coax Housing (4 Position) (shown)
20134005-01	Male Power Housing (4 Position) (shown)

Modules With Contacts

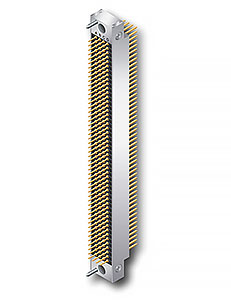

04000328-30 Connector (200 Contact, Male) — 04000328-30 Connector (200 Contact, Male)

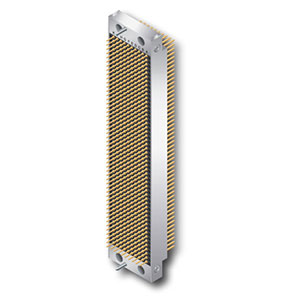

04000265-30 Connector (500 Contact, Male) — 04000265-30 Connector (500 Contact, Male)

Part Number	Description
193-211	Signal Contact (200 Position, Shrouded Box Posts)
193-241	Signal Contact (200 Position, PCB Straight)
193-243	Signal Contact (200 Position, PCB Right Angle)
193-251	Signal Contact (200 Position, PCB Transition to 4 x 25 x 2 Ejection Header)
193-253	Signal Contact (200 Position, PCB Extender)
193-201	Signal Contact (200 Position, Shrouded Hyperboloid Pins)
04000328-30	Connector (200 Contact, Male) (shown)
04000265-30	Connector (500 Contact, Male) (shown)

Contacts

00002493-07 Pin (RG316, Double Braided DC-3 GHz) — 00002493-07
Pin (RG316, Double Braided DC-3 GHz)

07030160-01 Signal Contact (Male, 0.25 Sq. Tail) — 07030160-01
Signal Contact (Male, 0.25 Sq. Tail)

07030161-01 Signal Contact (Male, Crimp) — 07030161-01
Signal Contact (Male, Crimp)

07030161-03 Signal Contact (Male, PCB) — 07030161-03
Signal Contact (Male, PCB)

20134004-01 Power Contact (12-14 AWG, Male) — 20134004-01
Power Contact (12-14 AWG, Male)

20134002-01 Coax Contact (RG405/T-Flex, Female) — 20134002-01
Coax Contact (RG405/T-Flex, Female)

Part Number	Description
00002493-07	Pin (RG316, Double Braided DC-3 GHz) (shown)
07030160-01	Signal Contact (Male, 0.25 Sq. Tail) (minimum order - 200) (shown)
07030160-05	Signal Contact (Male, 0.25 Sq. Tail) (minimum order - 100)
07030161-01	Signal Contact (Male, Crimp) (shown)
07030161-03	Signal Contact (Male, PCB) (shown)
20134004-01	Power Contact (12-14 AWG, Male) (shown)
20134002-01	Coax Contact (RG405/T-Flex, Male) (shown)
20134466-01	Power Contact (14 AWG, 23 A) Crimp-for Power Mdl 1
20134469-01	Coax Contact, RF (7 GHz, RG-316) Crimp-for RF Mdl 193-441
20134475-01	Signal Contact for the 200 Pin Connector Block
20134476-01	Power Contact for the RFI Power Block (14 AWG Wire)

Unterminated Patchcords (see Note 1)

Part Number	Description
196-343-36	Power with Three Feet of 14 AWG
196-413-36	Coax with Three Feet of RG316
196-415-36	Coax with Three Feet of RG178
196-111-36	Signal Box Pin with Three Feet of 18-28 AWG
196-003-96	Signal Hyperboloid x 4 Block with Three Feet of 18-28 AWG
Note 1 - Custom parts - available upon request.

Terminated Patchcords (see Note 1)

Part Number	Description
196-343-36L	Power with Three Feet of 14 AWG to Lug
196-413-36B	Coax with Three Feet of RG316 to BNC
196-415-36B	Coax with Three Feet of RG178 to BNC
196-413-36S	Coax with Three Feet of RG316 to SMA
196-415-36S	Coax with Three Feet of RG178 to SMA
Note 1 - Custom parts - available upon request.

Protective Covers

Part Number	Description
192-304	4-Slot ITA Cover
192-309	9-Slot ITA Cover
192-324	24-Slot ITA Cover
192-329	29-Slot ITA Cover

Cover Enclosures (see Note 1)

Part Number	Description
192-104	4-Slot Dual Drive Mount
192-109	9-Slot Dual Drive Mount
192-124	24-Slot Dual Drive Mount
192-129	29-Slot Dual Drive Mount
192-129	29-Slot Dual Drive Mount
Note 1 - Custom parts - available upon request.

Backshell Enclosures (see Note 1)

Part Number	Description
192-104-3	4-Slot Dual Drive Three-Inch Backshell
192-104-6	4-Slot Dual Drive Six-Inch Backshell
192-109-3	9-Slot Dual Drive Three-Inch Backshell
192-109-6	9-Slot Dual Drive Six-Inch Backshell
192-124-3	24-Slot Dual Drive Three-Inch Backshell
192-124-6	24-Slot Dual Drive Six-Inch Backshell
192-129-3	29-Slot Dual Drive Three-Inch Backshell
192-129-6	29-Slot Dual Drive Six-Inch Backshell
Note 1 - Custom parts - available upon request.

Screw Down Panel Enclosures (see Note 1)

Part Number	Description
192-104A-6	4-Slot Dual Drive Six-Inch Box
192-104A-12	4-Slot Dual Drive Twelve-Inch Box
192-104A-18	4-Slot Dual Drive Eighteen-Inch Box
192-109A-6	9-Slot Dual Drive Six-Inch Box
192-109A-12	9-Slot Dual Drive Twelve-Inch Box
192-109A-18	9-Slot Dual Drive Eighteen-Inch Box
192-124A-6	24-Slot Dual Drive Six-Inch Box
192-124A-12	24-Slot Dual Drive Twelve-Inch Box
192-124A-18	24-Slot Dual Drive Eighteen-Inch Box
192-129A-6	29-Slot Dual Drive Six-Inch Box
192-129A-12	29-Slot Dual Drive Twelve-Inch Box
192-129A-18	29-Slot Dual Drive Eighteen-Inch Box
192-129A-24	29-Slot Dual Drive Twenty-Four-Inch Box
Note 1 - Custom parts - available upon request.

Hinged Panel Enclosures (see Note 1)

Part Number	Description
192-104B-6	4-Slot Dual Drive Six-Inch Box
192-104B-12	4-Slot Dual Drive Twelve-Inch Box
192-104B-18	4-Slot Dual Drive Eighteen-Inch Box
192-109B-6	9-Slot Dual Drive Six-Inch Box
192-109B-12	9-Slot Dual Drive Twelve-Inch Box
192-109B-18	9-Slot Dual Drive Eighteen-Inch Box
192-124B-6	24-Slot Dual Drive Six-Inch Box
192-124B-12	24-Slot Dual Drive Twelve-Inch Box
192-124B-18	24-Slot Dual Drive Eighteen-Inch Box
192-129B-6	29-Slot Dual Drive Six-Inch Box
192-129B-12	29-Slot Dual Drive Twelve-Inch Box
192-129B-18	29-Slot Dual Drive Eighteen-Inch Box
192-129B-24	29-Slot Dual Drive Twenty-Four-Inch Box
Note 1 - Custom parts - available upon request.

Connector Components

Part Number	Description
04000267-03	End Cap, Connector
04000267-04	End Cap, Connector

ITA Fixture/Plug/Male Assemblies

20134300-50 IEEE-1505 ITA Assembly — 20134300-50
IEEE-1505 ITA Assembly

Custom Assemblies (see Note 1)

Part Number	Description
20134300-10	IEEE-1505 ITA Assembly
20134300-30	IEEE-1505 ITA Assembly
20134300-50	IEEE-1505 ITA Assembly (shown)
20134102-10	Interface Test Adapter Box Modification (Modified)
20134102-30	Interface Test Adapter Box Modification (Modified)
20134102-50	Interface Test Adapter Box Modification (Modified)
Note 1 - On-site source inspection required.

VDATS ITA Fixture/Plug/Male Assemblies

Patchcords (see Note 1)

Part Number	Description
20170501-10	Prototype (0.100) Center to RG178 VDATS Plug/Pin (minimum order - 50)
Note 1 - Custom parts - available upon request.

Common Parts

Modules Without Contacts

07030149-13 Pin Housing, Spacer 1W, Receiver/Fixture — 07030149-13
Pin Housing, Spacer 1W, Receiver/Fixture

07030149-15 Pin Housing, Spacer 2W, Receiver/Fixture — 07030149-15
Pin Housing, Spacer 2W, Receiver/Fixture

07030149-17 Pin Housing, Spacer 2.5W, Receiver/Fixture — 07030149-17
Pin Housing, Spacer 2.5W, Receiver/Fixture

Modules With Contacts

20134082-10 Pin Housing, 10 Sq. Tail Signal Loaded, Receiver — 20134082-10
Pin Housing, 10 Sq. Tail Signal Loaded, Receiver

20134083-10 Pin Housing, 10 Sq. Tail Signal Loaded, Fixture — 20134083-10
Pin Housing, 10 Sq. Tail Signal Loaded, Fixture

Contacts

Part Number	Description
201016461-01	Signal Contact (Box Crimp Type) (per 100)

Protective Covers

20134072-01 1-Slot Wide Cover — 20134072-01
1-Slot Wide Cover

20134072-03 2-Slot Wide Cover — 20134072-03
2-Slot Wide Cover

20134072-05 3-Slot Wide Cover — 20134072-05
3-Slot Wide Cover

20134072-07 4-Slot Wide Cover — 20134072-07
4-Slot Wide Cover

20134073-110 24-Slot Cover Assembly, Fixture — 20134073-110
24-Slot Cover Assembly, Fixture

20134074-110 24-Slot Cover Assembly, Receiver — 20134074-110
24-Slot Cover Assembly, Receiver

20134180-10 Cover Assembly, Ball Lock Engagement — 20134180-10
Cover Assembly, Ball Lock Engagement

Tooling

20134080-10 Receiver, Coax Extraction Tool Assembly — 20134080-10
Receiver, Coax Extraction Tool Assembly

20134081-01 Receiver, Coax Replacement Tip — 20134081-01
Receiver, Coax Replacement Tip

20134084-01 Socket Positioner (not shown) — 20134084-01
Socket Positioner (not shown)

20134528-10 Ball Lock Emergency Release — 20134528-10
Ball Lock Emergency Release

20134532-10 Coax Block Tool — 20134532-10
Coax Block Tool

Connectors

Part Number	Description
04000266-01	Rail, Connector
VPC is a trademark of Virginia Panel Corporation. Mac Panel is a trademark of MAC Panel Company.

Hardware

Part Number	Description
96000183-01	Receiver, 200 Pin, Header, Mounting Screw (minimum order - 100)
96000183-05	Mounting Screw, 200 Pin Header (Rear Mount Mod) (minimum order - 100)
96000184-01	Mounting Screw, 200 Pin Header (minimum order - 100)
96000184-05	Mounting Screw, 200 Pin Header (Rear Mount Mod) (minimum order - 100)
96000184-13	Receiver, 200 Pin, Header, Mounting Screw (minimum order - 100)
96000184-15	Mounting Screw, 200 Pin Header (minimum order - 100)
