Enhanced Video Systems
The Enhanced Programmable Video Generator and Analyzer (PVGA) provides the user with a highly flexible video test instrument. VXI, rackmount, and handheld options available.
Supports Advanced and Legacy DoD Video Applications in:
- HUDs
- Radars
- MPDs/MFDs
- Sonars
- FLIR
Aircraft Actively Supported:
- A-10
- B-1B
- B-2
- C-17
- F-15
- MQ-1 Predator
- MQ-9 Reaper
Custom Configurations:
- Interfaces
- VXI
- LAN
- USB
- MXI-Express
- Packaging
- VXI
- Rackmount
- Standalone
- Switching
- Multiplexing
- Distribution

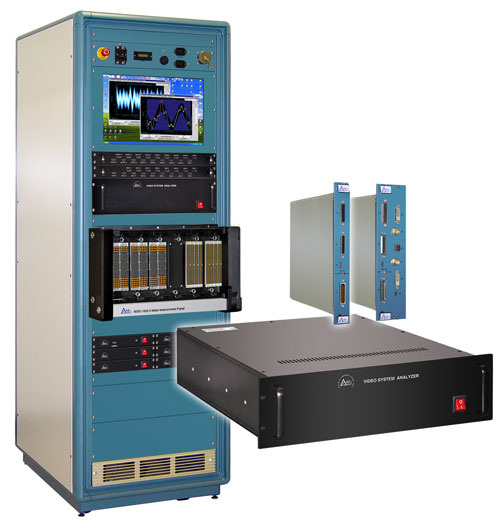

The VTS System integrates our most cutting edge instruments with sophisticated video switching and distribution systems through the best performing Mass Interconnect Panel commercially available, the IEEE-1505 standard. Our system design guarantees full video bandwidth to/from device under test.
The camera and controller interface are available to fully automate video display testing, which will improve test integrity and throughput.
The VTS capabilities are based on our unique, patented video test products that are relied upon throughout the Mil-Aero industry.
Widely known for our precision integration of legacy analog capabilities, we have incorporated support for digital standards propagating in systems today. Many of these video systems use complex serial data transmission techniques. To support the need to also properly test their physical protocols, we incorporated transmission path interrogation and analysis capabilities. This ensures your test engineers can properly isolate and identify the complex failures attributable to signal path and high speed data integrity failure.
Basic Video Test System Capabilities
- SDI Digital Video Support
- SD SDI Digital Video Generator
- HD SDI Digital Video Generator
- SD SDI Digital Video Acquisition
- HD SDI Digital Video Acquisition
- SDI Payload Emulator
- SDI Payload Analyzer
- Fiber Connectivity
- DVI Digital Video Support
- SD Digital Video Generator
- HD Digital Video Generator
- SD Digital Video Acquisition
- HD Digital Video Acquisition
- E-EDID Emulator
- E-EDID Analyzer
- Analog Video Support
- Primary Composite Video Generator
- Secondary Composite Video Generator
- Stroke Video Generator
- Raster Video Generator
- Mixed Video Generator
- Analog Acquisition
- NTSC/S-Video Generator
- NTSC/S-Video Acquisition
- Flat Panel Display Generator (LVDS)
- Flat Panel Display Acquisition (LVDS)
- Analog Real-Time Redisplay
- Video Redisplay Tool
- High Voltage Stroke Outputs
- RGB Bitmap Generation
- RGB High Resolution Color Acquisition
- VidSOFT
- VidSOFT Tool Suite Framework
- Automatic Code Generation Tool
- VSA (Virtual Spectrum Analyzer)
- Golden Image Analysis & Verification
- VRT (Video Redisplay Tool)
- Macro Generation Wizard
- Analog & Digital Pattern Generation Wizard
- Test Sequencer Wizard & ATML SQL Engine
- Video Measurement Analysis Library
- Protocol ID w/Metrics
- Sample ANSI-C project with Media
- Sample LABView Project with Media
- ePVGA Driver(s) DLL with Media
- IEEE-1505.3 Mass Interconnect Panel
- Redisplay Monitor
- Bulk Power Supplies
- 5V, 12V & 24V DC
- 2 × 16 Digital Video Distribution Amp
- 16 × 1 Digital Video Multiplexer
- 1 × 8 Analog Video Distribution Amp
- 8 × 1 Analog Video Multiplexer
- TLT Analog Suite
- 2GSa/Sec Digitizing Oscilloscope
- DMM
Optional Video Test System Capabilities
Option 1
- 2 × 16 SDI Video Distribution Amp
- 16 × 2 SDI Video Multiplexer
Option 2
- 2 × 32 Fiber Optic Video Distribution Amp
- 32 × 2 Fiber Optic Video Multiplexer
Option 3
- 4 Port USB/KVM Analyzer
Option 4
- Camera Sensor & Controller
Option 5
- TLT Analog Suite Extension
- 6 GHz Pattern Generator
- Instrument Grade 4 × 32 Crosspoint Switch
- High Isolation 4 × 128 Relay Switch
- 6 GHz VNA to cable testing
- 6 GHz PNA to cable testing
- Fiber Cable Analyzer
