Equipment

---

20216000-01

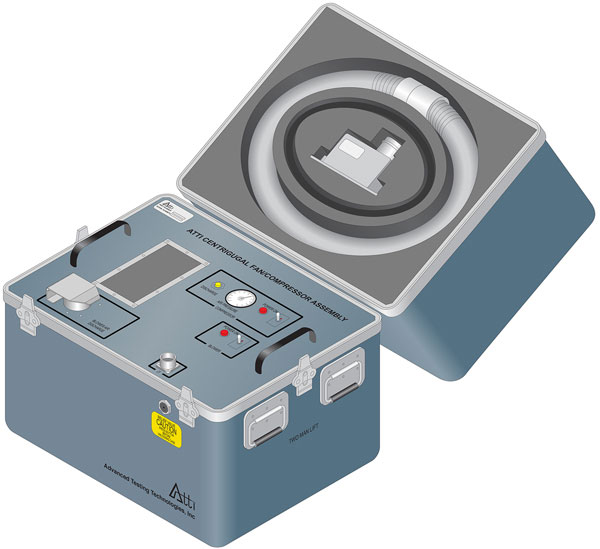

Centrifugal Fan/Compressor Assembly (F-15 Form-Fit-Function Replacement)

The Centrifugal Fan/Compressor Assembly provides the US Air Force with a Form-Fit-Function replacement for the F-15 Centrifugal Fan NSN 4140-01-432-3808. It provides forced air cooling and wave guide pressurization in a portable shock resistant transit case. The blower will supply 100 CFM @ 8.4" H₂O of forced air cooling; the compressor will supply 30 PSI of wave guide pressurization. The unit will operate on 115VAC 40-400Hz, 20 A power. The blower and compressor are operated by separate switches, each with its own indicator LED showing operational status; the compressor is outfitted with a gauge to indicate wave guide pressure.

Centrifugal Fan/Compressor Assembly Specifications

---

CNTX-1
Control Device (Requires ICSS Software License Agreement)- Provides interface to BRAT tester and TPS (includes CPIN)

00002299-01
VSWR Adjustable Waveguide

02200108-01
Air Data Test Set

• Simultaneously measures an input pressure and controls an output pressure
• Displays input and output pressure parameters as steady state altitude or airspeed or as rate of change of altitude or airspeed
• Provides 2 pneumatic outputs (Ps and Pt)
• Altitude can be displayed in feet or meters
• Airspeed can be displayed in knots, MPH, ft/s, m/s, km/Hr, Mach
• Pressure can be programmed or read in inches Hg, PSI, mBar, kPa
• Static pressure (Ps) output has a range of 0 to 32.15 inches HgA
• Total Pressure (Pt) output has a range of -0.5 to 73.55 inches Hg
• Operates in local or remote mode

02200207-10
Compressor/Vacuum Pump Case Assembly

02300521-10
Controller Case Assembly with Controller (BRAT 514A)

• Used to position camera
• Provides power for system
• Provides communication from computer

04000197-10
Switch Assembly

• BRAT universal analog crosspoint switch assembly

05001000-10
Antenna Mass Simulator

• Provides the capability required to test Antenna Servo Electronics systems

07030141-10
Bridge Card Assembly

• Provides communication between three Z50 modules

07030400-10
CCA, ZIF Pod 1

• Provides interface between BRAT J1 and instrument subsystem

07030428-01
AC to DC Converter, 5 V

• Power: 60 W
• Input Voltage: Single Phase
• Output Voltage: 5 V
• Output Current: 8 A

07030450-10
CCA, ZIF Pod 2

• Provides interface between BRAT J2 and instrument subsystem

08010009-10
Liquid Cooling System

• A liquid cooling cart for use with high power RF systems
• Supplies liquid coolant
• Remote On and Off
• Coolant types:  Coolanol 25 or PAO
• Coolant flow of 2.5 gal/min
• Interconnecting hoses and cables

20182000-10
LVDS-TTL Conversion Board

• Includes integration support to adjust LVDS-TTL Conversion Board design so that it fully and successfully works in the MFoCS ITA until integration is complete. Requires MFoCS LRU to be supplied for testing purposes to verify validity of LVDS-TTL Conversion Board. (Drawings not included) (Minimum Purchase: 2)

20182100-10
LVDS-TTL Conversion Board (Does not include integration support)

92103782-01
Waveform Generator

94100500-10
Electronic Power Control Center - BRAT with Rubidium

• Power up sequencing of single-phase/3-phase power input to outlets
• Elapsed time indicator
• Emergency stop for removing power from configured outlets
• Monitoring of AC line inputs for dropout/reversed phases
• Rubidium oscillator with 3 high-isolation outputs for common stable time reference

94100500-30
Electronic Power Control Center - BRAT

• Power up sequencing of single-phase/3-phase power input to outlets
• Elapsed time indicator
• Emergency stop for removing power from configured outlets
• Monitoring of AC line inputs for dropout/reversed phases

94100500-50
Electronic Power Control Center - Single Phase

• Power up sequencing of single-phase power input to outlets
• Elapsed time indicator
• Emergency stop for removing power from configured outlets

94100500-70
Electronic Power Control Center - RF Rack

• Power up sequencing of single-phase power input to outlets
• Elapsed time indicator
• Emergency stop for removing power from configured outlets

94100500-90
Electronic Power Control Center - BRAT with Rubidium

• Power up sequencing of single-phase/3-phase power input to outlets
• Elapsed time indicator
• Emergency stop for removing power from configured outlets
• Monitoring of AC line inputs for dropout/reversed phases
• Rubidium oscillator with 3 high-isolation outputs for common stable time reference

94100500-110
Electronic Power Control Center - BRAT

• Power up sequencing of single-phase/3-phase power input to outlets
• Elapsed time indicator
• Emergency stop for removing power from configured outlets
• Monitoring of AC line inputs for dropout/reversed phases

94100500-150
Electronic Power Control Center - RF Rack

• Power up sequencing of single-phase power input to outlets
• Elapsed time indicator
• Emergency stop for removing power from configured outlets

94100500-190
Electronic Power Control Center - Single Phase with Rubidium (with Internal Drops)

• Power up sequencing of single-phase power input to outlets
• Elapsed time indicator
• Emergency stop for removing power from configured outlets
• Rubidium oscillator with 3 high-isolation outputs for common stable time reference

94100500-230
Electronic Power Control Center - Single Phase with Rubidium (with Rear Multi-Coax)

• Power up sequencing of single-phase power input to outlets
• Elapsed time indicator
• Emergency stop for removing power from configured outlets
• Rubidium oscillator with 3 high-isolation outputs for common stable time reference

94100500-250
Electronic Power Control Center - Single Phase with Rubidium (with Rear Multi-Coax)

• Power up sequencing of single-phase power input to outlets
• Elapsed time indicator
• Emergency stop for removing power from configured outlets
• Rubidium oscillator with 3 high-isolation outputs for common stable time reference

94100500-370
Electronic Power Control Center - RF Rack

• Power up sequencing of single-phase power input to outlets
• Elapsed time indicator
• Emergency stop for removing power from configured outlets

94100671-10
Waveguide Pressurization Unit and Blower Assembly

• Super-dried compressed air at 15 psi
• Forced air up to 270 cfm (free delivery)
• Monitored outputs:  3 (blower pressure, blower air flow, compressed air pressure)

94100671-30
Waveguide Pressurization Unit

• Super-dried compressed air at 15 psi

94101013-10
Phase Noise Measurement System Reference Source Unit

• Generates RF reference signals in UHF, L, and X bands
• Coherent UHF, L-band, and X-band outputs from external reference source
• Simultaneous fixed-frequency outputs with individually controlled amplitudes

94101013-50
Phase Noise Measurement System Reference Source Unit with Option 02

• Generates RF reference signals in UHF, L, and X bands
• Coherent UHF, L-band, and X-band outputs from external reference source
• Simultaneous fixed-frequency outputs with individually controlled amplitudes
• Increases the programmable COHO frequency coverage
• Noise source injection testing
• 2-tone RF signal generation
• Increased programmable attenuation
• Increased switching capabilities

94101013-OPT02
Phase Noise Measurement System Reference Source Unit Option 02 - Broadband Upgrade

94101130-01
Phase Noise Measurement System

• Measures phase and amplitude noise on both CW and pulsed RF signals at carrier frequencies between 10 MHz and 18 GHz
• Measures absolute phase noise, additive phase noise, and amplitude phase noise
• Measures noise at any offsets between 0.01 Hz and 40 MHz

94101201-10
Logic Analyzer Case Assembly

• High speed digital logic analyzer for use in analyzing complex digital waveforms
• 102 Channels
• 200 MHz State mode operation
• 800 MHz Timing mode operation

95650141-10
Remote Control Panel

95650142-10
Three-Phase Power Distribution System

• EMI/RFI filter
• 14 Outlets
• Remote power on/off
• Circuit breakers for each phase
• Rack mountable

95650143-10
Single-Phase Power Distribution System

• EMI/RFI filter
• 8 outlets
• Remote power on/off
• Circuit breaker protection
• Rack mountable

95650715-01
LAN Switch

95650725-01
UPS Battery

96000169-10
1.2 MHz Low Pass Filter Assembly

96000169-30
2.2 MHz Low Pass Filter Assembly

96000170-10
1.9 MHz Low Pass Filter Assembly

96648122-10
BRAT RF Interface Cable Assembly

98715001-01
DC Power Supply

• Resolution:  12 bits
• Range:  1 x 0 to 600 Vdc @ 1.7 A

98715001-03
DC Power Supply

• Resolution:  12 bits
• Range:  1 x 0 to 60 Vdc @ 16 A

98715002-01
Relay Matrix

• Format:  32 x 8 switched pairs
• Voltage:  200 Vdc max.
• Current:  1.5 A carry, 0.5 A switch
• Bandwidth:  50 MHz

98715003-01
Form C Relays

• Relays: 48 Form C relays
• Voltage: 220 V switch
• Current: 0.5 A switch
• Bandwidth: 50 MHz at -3 dB
• Power: 1.25 KVA max.

98715004-01
Rail Generator for 98715005-01

• Levels:  4 output voltage levels, 4 input voltage levels
• Range:  -4 Vdc to +7 Vdc

98715005-01
Programmable Level Dynamic Digital Unit

• Pins:  32 input, 32 output (options for additional pins)
• Skew:  15 ns max.
• Edge:  Resolution 100 ps, accuracy ±2 ns
• Clock:  25 MHz pattern rate, 16 format clocks
• Memory:  7 @ 64K each (output, 3-state, out algorithm, expect, mask, in algorithm, record)
• Levels:  Programmable

98715006-01
Variable I/O Module for 98715005-01

• Output drivers:  32 programmable channels
• Input receivers:  32 programmable channels

98715007-01
Static Digital Latch

• Pins:  64 input, 64 output
• Input threshold level:  Programmable -32 to +32 V
• Output level:  Internal pull up to 5 V or external to +42 V (max.)
• Output sink current:  250 mA

98715008-01
Programmable Resistance Module

• Channels:  1
• Accuracy:  0.1%
• Resolution:  0.1 Ohm
• Range:  0 to 1 MOhm

98715011-01
Power Digital to Analog Converter

• Channels:  4
• Voltage range:  ±4 Vdc or ±(0 to 40) Vdc
• Resolution:  16 bits
• Current:  0 to 300 mA

98715012-01
Arbitrary Waveform Generator

• Channels: 1 output channel
• Frequency range: 1.0 MHz to 25 MHz
• Amplitude (1 MOhm): 20 mV to 22 V p-p
• Amplitude (50 Ohm): 10 mV to 11 V p-p
• Standard waveforms: 8 (sin, triangle, square, pulse, pos ramp, neg ramp, arbitrary, DC)
• Custom waveforms: 64K points, 12-bit data, 50 MHz data rate
• Modulation modes: 6 (FM, PM, AM, PSK, FSK, PWM)

98715013-01
Dual-Pulse, Arbitrary Function Generator

• Channels:  2 pulse channels, 1 arbitrary channel
• Frequency range:  10 Hz to 50 MHz
• Amplitude (50 Ohm):  5.0 mV p-p to 22.0 V p-p
• Pulse period:  10.0 ns to 1.0 s
• Pulse width:  10.0 ns to 1.0 s
• Pulse delay:  120 ns to 1.0 s
• Rise/fall times:  3.0 ns to 150 ns
• Modes: 6 (normal, trig, delay trig, burst, gated)

98715014-01
Blower Assembly

• Flow rate:  270 CFM @ 0" water, 160 CFM @ 3" water
• Monitored signals: 3 (temp, press, flow rate)

98715015-01
DC Power Supply

• Resolution:  12 bits
• Range: 1 x 0 to 300 Vdc @ 15 A

98715017-01
Rack Blower Assembly

• Flow rate:  320 CFM

DCSS-10
Dual-Channel Satellite Simulator/Converter

• Provides independent uplink and downlink functions between a 70 MHz IF carrier and UHF frequencies
• Synthesized local oscillators allow frequency tuning while providing low group delay and flat frequency response
• Gain and frequency control can be adjusted locally via front panel
• Stand-alone instrument with remote Ethernet programming/control
• Installed in a ruggedized case for lab or field use

LPF-2009090
Low Power Filter Production

• Contingent upon a total quantity of 700 or greater, in lots of 75 to 150

---
