Digital Video Testing

Enhanced Programmable Video Generator and Analyzer Offering the Broadest Video Support of any Commercially Available Generation and Acquisition Instrument

ENVID GEN-510 With Option 3 or 3A

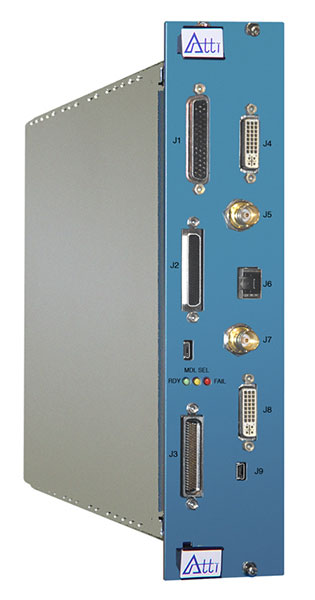

ENVID GEN-510 W/Option 3
All 510 Features Plus HDMI, DVI, and SDI Video Generation and Acquisition
ENVID GEN-510 W/Option 3A
All 510 W/Option 3 Features Plus DisplayPort Video Generation and Acquisition

General Specification

  • Simultaneous Generation and Capture Operation
  • Generation Frame buffer: 8MB
  • Acquisition Frame buffer: 8MB
  • State-of-the-art factory re-programmable FPGAs for upgrading and feature enhancements
  • A32/D16 VXI bus compatibility (register-based), when using the motherboard

DVI/HDMI/DisplayPort Specifications

  • HDMI generation and acquisition for all HD formats at resolutions up to UXGA (1600 x 1200 at 60 Hz)
  • Fully HDMI 1.4 compliant
  • Maximum TMDS clock frequency of 225 MHz
  • RGB 8:8:8 bit and YCbCr 8:8:8 bit capability
  • Full info-frame capture and insertion
  • Supports custom info-frame data structures
  • Video generator capable of displaying dynamic overlays
  • DVI 1.0 downward compatibility including standard definition (SD) modes (progressive/interlaced)
  • DDC hardware supports custom EDIDs up to 2KB structures at 128 bytes per block
  • Supports CEA-861 video formats
  • EDID capture and analysis available
  • Auxiliary connectors for audio capture available for future expansion
  • Integrated cable length compensation

SDI Specifications

  • Generation and acquisition supports SMPTE 425M (A/B), 424M, 292, 259M-C specifications
  • Simultaneous generation and acquisition possible
  • Operation from 270 Mb/s through 2.970Gb/s
  • Ancillary data extraction and insertion
  • Copper PHY connection via BNC connectors
  • Separate XMIT and RCV optical modules
  • Optional Fiber-optic SDI available. Removable SFP modules can be provided
  • Integrated cable driver
  • Lossless RGB 8:8:8 video data format
